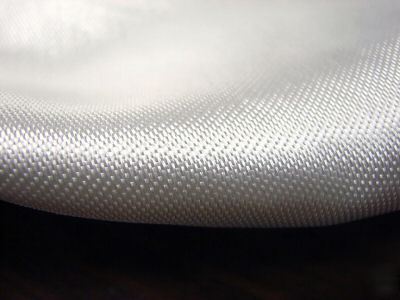

Fiberglass cloth 4H satin weave 3 oz/sq/yd HEXCEL120


Fiberglass cloth 4H satin weave 3 oz/sq/yd HEXCEL120

(3 Feet Long By 38 Inches Wide)
Warp Yarn: ECD 450 1/2 EC5 11 x2
Fill Yarn: ECD 450 1/2 EC5 11 x2
The four harness satin weave is more pliable than the plain weave and is easier to conform to curved surfaces typical in reinforced plastics. In this weave pattern there is a three by one interfacing where a filling yarn floats over three warp yarns and under one.
It is one of the most widely used weave style used in the composites industry.
This style fabric is one of the easiest fabrics to use and it is ideal for laying up cowls, fuselages, ducts and other contoured surfaces with minimal distortions.
(3 Feet Long By 38 Inches Wide)
For multiple yard purchase, request for an invoice or total before paying and
Also available in full rolls at wholesale pricing
Please inquire and we will list the full roll price and availability.
The minimum cut length is 1 yard or
3 feet length by 38 inches wide
(folded and packaged in sealed bag)
Cut lengths greater than 10 yards will be supplied rolled on cardboard core
This weave style is woven using one yarn carried over several yarns before going under a single yarn. The fabric is more pliable and can comply with complex contours and spherical shapes. Volan Finished cloths exhibits faster and complete wet out with most thermoset resins for less air bubble entrapment and porosity. Cured laminates tend to dent rather than crack making it an ideal fabric for high impact applications. Use this fiberglass cloth when high strength parts are desired and where curved and contoured parts are to be produced. It is ideal for structural construction, composites reinforcement, mold making, aircraft and auto parts tooling, marine and other composite lightweight applications.
Volan is also known as Chrome Finish due to presence of chromium applied to glass fibers . The Volan sizing or finish is applied to fiberglass fabric during the manufacturing process to give good bonding to epoxy, vinyl ester and polyester resins. If used with clear resins, Volan cloth will appear to have a slight greenish tint.
Aircraft Advanced Composites, Marine and Boat Building, General Composites
Click on the picture to pause or play slide show
Wood for kayak reinforcing using MAX CLR-HP with Satin Weave Fiberglass
MAX CLR HP used for this construction
PolymerProducts, The Epoxy Experts
For All Your Composite Fabric Needs
We Have Just Acquired Thousands Of Yards
ยท Aluminum and Phenolic Honeycomb Cores
Factory woven by one of the largest weavers and producers of composite fabrics for aerospace, marine, electronic and structural composite materials.
CLICK ON THE PICTURE TO PAUSE SLIDE SHOW
Other Fabric Weave Types And Finishing Available
In this most simple weave pattern, warp and fill yarns are interlaced over and under each other in alternating fashion. The plain weave provides good stability, porosity and the least yarn slippage for a given yarn count.
The mock leno weave is used where relatively low numbers of yarns are involved. The leno weave locks the yarns in place by crossing two or more warp threads over each other and interlacing with one or more filling threads.
The four harness satin weave is more pliable than the plain weave and is easier to conform to curved surfaces typical in reinforced plastics. In this weave pattern there is a three by one interfacing where a filling yarn floats over three warp yarns and under one.
The eight harness satin is similar to the four harness satin except that one filling yarn floats over seven warp yarns and under one. This is a very pliable weave and is used for forming over curved surfaces.
This twill weave is more pliable than the plain weave and has better drapability while maintaining more fabric stability than a four or eight harness satin weave. The weave pattern is characterized by a diagonal rib created by one warp yarn floating over at least two filling yarns.
Chrome Finishes (Volan A) F-16 & F-3
Heat cleaned fabric is saturated in a methacrylate chromic chloride solution, cured, and washed to remove any soluble salts. Both F-16 and F-3 are Volan type finishes with F-3 being a high chrome content version. Used with polyesters, phenolics, and epoxies, F-16 and F-3 fabrics make a light green laminate.
Please inquiry for volume discount.
If you have any questions or special applications, our staff polymer chemist will be more than happy to answer your questions.
